Why Do Industrial Burner Systems Require Regular Calibration and Testing?

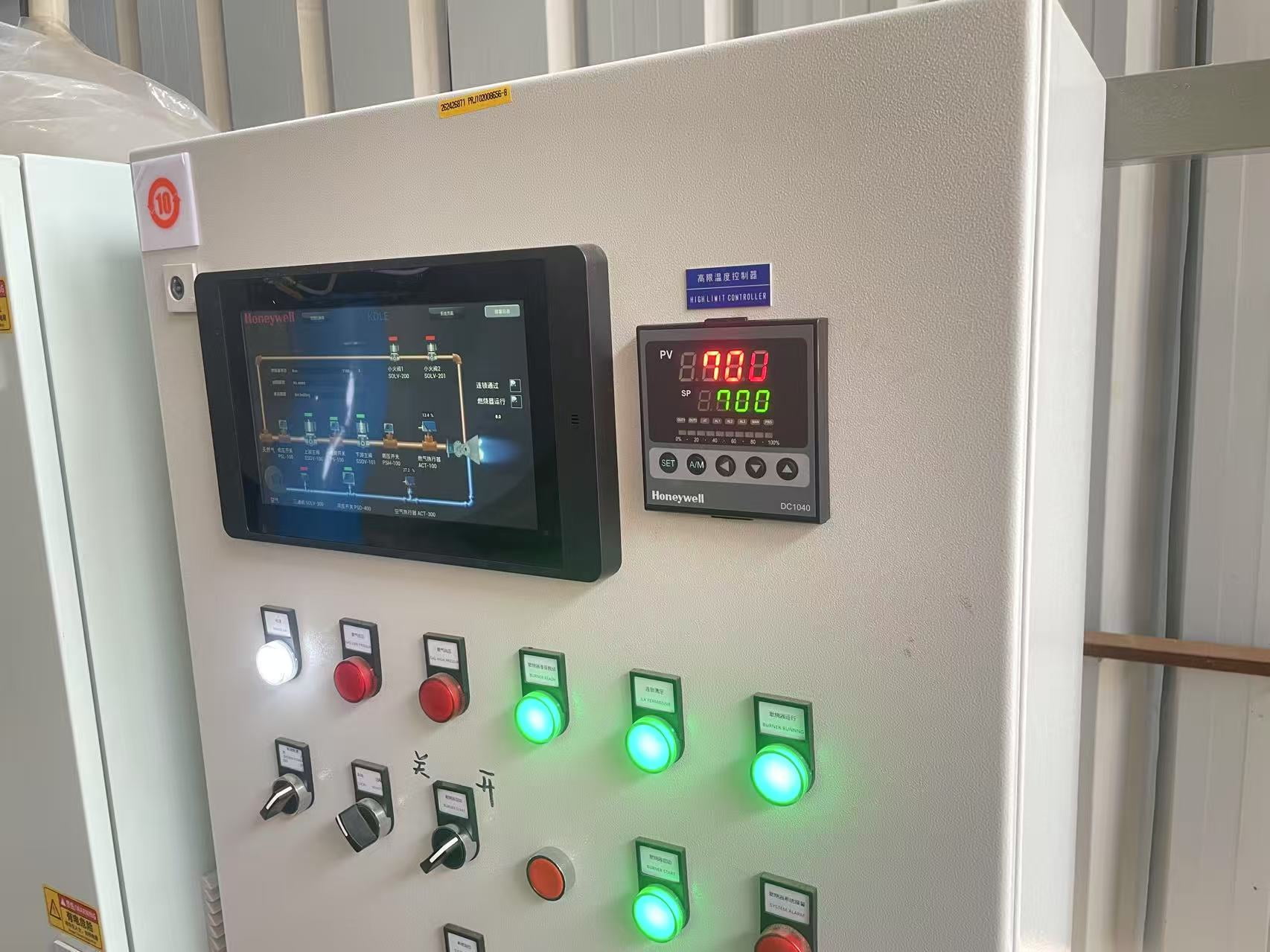

Calibration Protects the Air-Fuel Ratio That Determines Fuel Cost

A tuned natural-gas Industrial Burner System normally targets 2-3% oxygen in dry flue gas, equal to roughly 10-15% excess air under stable high-fire conditions [1]. Reducing excess air by 15 percentage points, or cutting stack temperature by 40°F, can improve boiler efficiency by about 1 percentage point when heat-transfer surfaces and draft conditions remain comparable [2].

That relationship is not an accounting trick; it is basic thermodynamics. Every kilogram of unneeded combustion air enters the burner at ambient temperature, absorbs heat in the furnace, and exits through the stack. If the burner drifts from 3% O2 to 6% O2, the system is heating extra nitrogen and oxygen instead of transferring that energy into steam, thermal oil, hot water, kiln load, dryer air, or process material.

Regular calibration corrects this drift by checking the linkage, actuator position feedback, fuel valve characterization, VFD response, draft pressure, oxygen trim, and analyzer span. On older jackshaft systems, mechanical hysteresis can shift the air damper curve after bearing wear, linkage loosening, or seasonal air-density changes. On parallel-positioning systems, the servo maps may remain repeatable, but only if the fuel pressure regulator, combustion air fan, O2 probe, and stack draft are still operating inside their verified ranges.

The practical goal is not to run as close to stoichiometric combustion as possible. Stoichiometric natural-gas combustion has no oxygen margin, so small disturbances can create carbon monoxide, flame instability, or delayed ignition. The target is a controlled oxygen reserve: enough air for complete combustion, not enough air to waste heat through the stack. Calibration converts that balance from a commissioning snapshot into a repeatable operating condition.

Testing Prevents NOx Compliance From Becoming Guesswork

For new medium combustion plants firing natural gas in the 1-50 MW thermal input range, EU MCPD-type permitting often uses a NOx benchmark near 100 mg/Nm3 under defined reference oxygen and dry-gas conditions [3]. Flue gas recirculation can recirculate up to 20% of flue gas into the combustion zone and cut industrial-boiler NOx by up to 60% in applicable designs [4].

NOx control depends on flame temperature, oxygen concentration, residence time, and fuel-bound nitrogen. In natural-gas burners, thermal NOx is usually the dominant mechanism because methane contains little chemically bound nitrogen. If calibration allows the burner to run with excess oxygen at peak flame temperature, NOx rises. If the technician forces the burner too fuel-rich to suppress NOx, CO and unburned hydrocarbons rise. A compliant Industrial Burner System needs both the emissions result and the combustion logic behind it.

Testing verifies this logic across the firing range. A single high-fire reading is not enough for a modulating burner that spends 60% of its operating hours at 25-55% load. The commissioning curve should be checked at low fire, crossover, mid-fire, and high fire. At each point, the service record should capture O2, CO, NOx, stack temperature, draft, fuel pressure, fan speed or damper position, and load.

Low-NOx hardware adds another reason for periodic verification. Staged-air burners, staged-fuel burners, internal recirculation heads, and external FGR systems depend on carefully distributed mixing. Burner throat deposits, warped diffusers, plugged FGR ports, fan fouling, or changed furnace pressure can alter the local oxygen field even when the control panel shows the same command signal. Annual or semiannual testing gives operators a defensible emissions trend before the stack test becomes a regulatory surprise.

Flame Safety Testing Finds Failures That Calibration Alone Cannot See

Industrial combustion safety programs commonly require inspection and testing intervals ranging from daily flame observation to annual safety shutoff valve tightness testing [7]. NFPA 85-style and NFPA 86-style programs also require documented verification of safety interlocks, shutoff devices, and operating set points at defined intervals [7].

Combustion calibration optimizes performance; safety testing proves the burner will fail safely. These are related tasks, but they are not interchangeable. A burner can show acceptable O2, CO, and NOx while still having a leaking safety shutoff valve, weak flame-signal margin, bypassed airflow switch, incorrect purge timing, or a pressure switch that no longer trips at the required threshold.

The technician should not only confirm that each device changes state; they should confirm that the burner management system receives the correct state and drives the correct shutdown action.

The reason is straightforward: fuel accumulation creates explosion risk before an operator has time to interpret trends. A flame scanner with marginal UV signal, an IR sensor looking through a dirty sight tube, or a scanner aimed at refractory glow can create a false sense of stability. Regular testing forces the system into controlled fault conditions, proving that detection and shutdown happen before unburned fuel can accumulate in the chamber.

Turndown Calibration Reduces Cycling, Wear, and Process Temperature Error

Most efficient natural-gas burners can deliver 10:1 or 12:1 turndown with limited loss of combustion efficiency, and some designs can reach up to 35:1 on gas under suitable boiler and control conditions [6]. A 10:1 turndown means the burner can operate at 10% of rated input without cycling off, provided low-fire combustion remains stable [6].

Turndown is valuable only when each firing point is calibrated. Many plants buy a high-turndown burner and then lose its benefit because low-fire O2, draft, or gas pressure is not verified after months of operation. If the burner cannot hold a clean flame at minimum input, the control system will short-cycle. Each start adds purge losses, thermal stress, igniter wear, valve cycles, and production variability.

For ovens, dryers, kilns, heat-treatment furnaces, and thermal oxidizers, poor low-fire calibration also causes process temperature error. The burner may meet the average setpoint while still overshooting during restart and undershooting during purge. That matters for coatings, curing, ceramic firing, annealing, food drying, textile finishing, and chemical processing where residence time and temperature uniformity affect product yield.

Testing should therefore include low-fire stability, light-off repeatability, flame signal strength, minimum gas pressure, furnace pressure, and O2/CO at the actual minimum operating point. If the burner uses ratio control, the fuel and air curves should be validated at multiple loads. If it uses O2 trim, the trim authority should be limited so a drifting probe cannot drive the system outside the proven combustion map.

Stack Temperature Confirms Whether Heat Is Going Into the Process

Stack temperature is often kept above 300°F in non-condensing systems to reduce condensation risk in ducts, fans, and stacks [8]. A 40°F stack-temperature reduction can correspond to about a 1 percentage point efficiency gain when combustion conditions and heat-transfer surfaces are otherwise comparable [2].

This is why calibration and heat-transfer testing belong together. If O2 is correct but stack temperature is climbing, the burner may not be the only problem. Fouled boiler tubes, soot, scale, refractory damage, bypassing dampers, leaking economizer seals, or excessive draft can move heat into the stack instead of the load. Conversely, lowering excess air without checking stack temperature and CO can hide a developing combustion problem.

A useful service report treats stack temperature as a diagnostic variable, not a decorative number. At each firing rate, the technician should compare stack temperature with historical baselines at similar load, ambient air temperature, fuel composition, and return-water or feedwater condition. A 30-50°F increase at the same load may justify tube cleaning, economizer inspection, burner diffuser inspection, or draft correction.

This closes the energy loop. Fuel input, excess air, stack temperature, and useful output must agree. If the numbers do not agree, the plant should not accept a single “combustion efficiency” printout without investigating the physical cause.

The Data-Driven Mandate for B2B Burner Maintenance

A defensible Industrial Burner System program should track 5-8 core indicators: 2-3% O2, 10-15% excess air, NOx near the applicable mg/Nm3 permit threshold, CO below the site alarm/action level, stack temperature trend, turndown stability, safety shutoff leakage status, and flame-signal margin [1]–[8]. For a continuous-duty plant operating 8,000 hours per year, a 1 percentage point combustion-efficiency loss affects nearly every monthly fuel invoice [2].

The maintenance file should be built like a technical dossier. Each calibration event should record instrument serial numbers, calibration gas values, analyzer date, ambient conditions, fuel pressure, combustion air temperature, draft, firing rate, O2, CO, NOx, stack temperature, and final controller settings. If the burner has FGR, the report should include FGR damper or fan position and recirculation flow estimate. If it has O2 trim, the report should include probe calibration and trim limits.

This level of documentation supports three business outcomes. First, it gives operations teams a baseline for troubleshooting. Second, it gives EHS teams evidence for emissions compliance. Third, it gives procurement and engineering teams data for deciding whether to retrofit oxygen trim, parallel positioning, VFD combustion air control, low-NOx heads, FGR, economizers, or burner management upgrades.

Regular calibration and testing are therefore not just maintenance tasks. They are the measurement system that connects fuel cost, emissions liability, safety integrity, process quality, and asset life.
