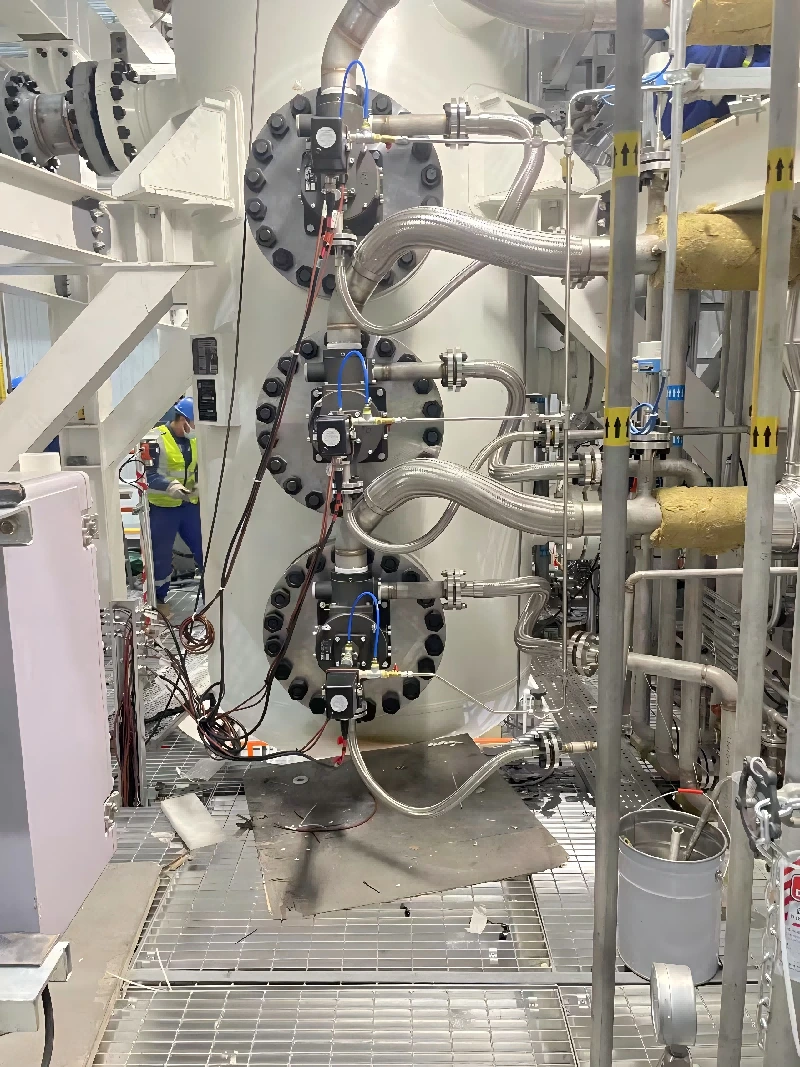

How to Select the Right Burner System for Your Industrial Boiler

Matching Burner Capacity to Boiler Load Profiles

Matching the burner input capacity to the boiler’s load profile improves baseline thermal efficiency by 5–8% [1]. When selecting the burner system for the boiler, operators must analyze steam demand variance; oversizing the burner by more than 15% forces the system into frequent “on-off” cycles, leading to significant thermal stress.

Boilers typically operate in one of two modes: base-load or swing-load. For swing-load applications, selecting a burner that operates at 70–80% of its maximum rating during peak demand is ideal. This allows the system enough headroom to handle transient spikes without over-firing. Conversely, if the burner is sized for the maximum capacity but the process operates at 30% of that load, the burner enters a cycling mode. This cycling induces high oxygen levels during pre-purge and post-purge, resulting in a stack gas temperature drop and a direct increase in fuel consumption by 2–3% per hour of operation.

Optimizing Turndown Ratios for Operational Stability

Selecting a burner system for the boiler with a 10:1 turndown ratio eliminates 80% of energy waste associated with startup purge cycles [2]. Mechanical linkage-based burners are historically limited to 3:1 turndown ratios, which force the burner into standby mode as soon as the load drops below 33% of capacity.

Every startup cycle requires a safety purge of the boiler, where ambient air replaces the steam-saturated environment. This process wastes approximately 0.5% of total system energy per cycle due to the heat required to bring the refractory and heat exchanger back to operating temperature [2]. A 10:1 turndown capability allows the burner to modulate flame output dynamically, staying online throughout the entire process range. This continuous operation eliminates the purge loss entirely, stabilizing the internal boiler environment and preventing the refractory fatigue often seen in burners that “hunt” for the setpoint.

Emission Compliance and Flue Gas Recirculation (FGR)

Utilizing Flue Gas Recirculation (FGR) allows the burner to maintain NOx levels below 30 mg/Nm³ while keeping excess oxygen levels between 1.5% and 2.0% [3]. When selecting a burner system for the boiler, confirm that the combustion head is engineered to handle FGR volume fractions of 15–20% without compromising flame stability.

Legacy burners often lack the internal geometry to mix recirculated gas with primary air effectively. If the FGR volume fraction exceeds 25%, the combustion process becomes prone to flame lift-off and CO spikes exceeding 100 ppm, as the reduced oxygen concentration hinders complete combustion. Modern systems link the FGR damper directly to the digital burner management system. This ensures that the FGR mass flow is automatically adjusted based on the firing rate, preventing localized oxygen depletion and ensuring that emission compliance is maintained without operator intervention.

Control Logic and Digital Modulation

Electronic air-fuel ratio control improves PID temperature stability to within ±1°C, reducing steam pressure fluctuations by 40% [4]. Selecting a burner system for the boiler that integrates VFD-driven combustion fans and independent servo-actuated dampers allows for precise, micro-second adjustments to the combustion process.

Digital control replaces the hysteresis inherent in mechanical cams and linkage arms, which often degrades by ±2% over an 18-month operation cycle [5]. By utilizing independent servos, the system can map the air-fuel curve at 10–15 distinct firing points. This granularity allows the burner to maintain the optimal 1.5–2.0% excess O2 throughout the entire range, preventing the “drift” that occurs when mechanical linkages wear.
