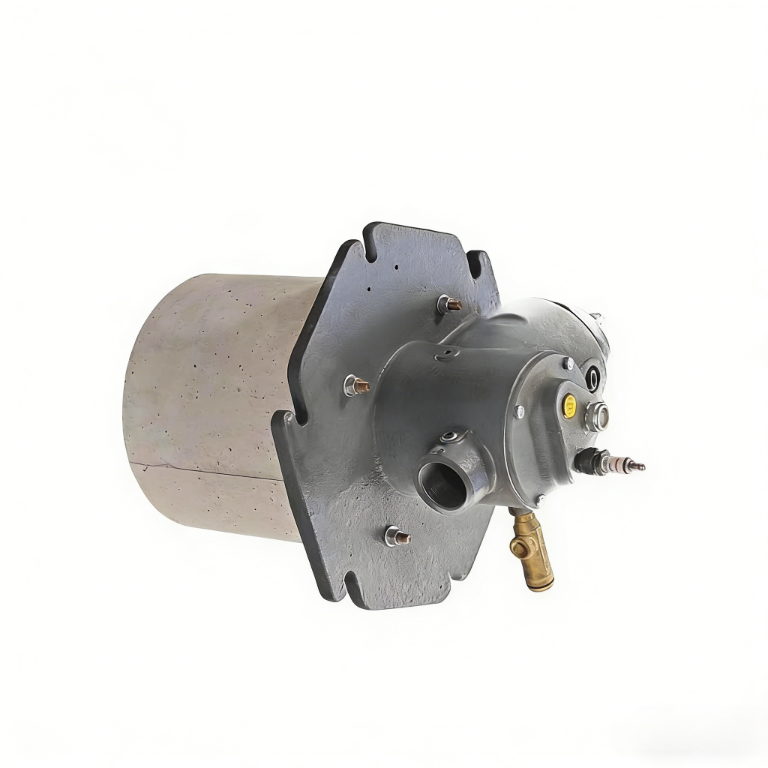

Heatflam HBC Series Burners
Versatile industrial combustion systems for diverse heating applications, with multiple sub-series (1104/2104/3104 to 1124/2124/3124) for broad capacity needs. Multi-fuel (NG, LPG, No.2/No.6 fuel oil) compatible, supporting ambient or preheated (up to 900°F/482°C) secondary air. Low/high-pressure atomization (gaseous/No.2 fuel oil; No.6 fuel oil) for stable combustion. Capacity: 310,000–124.55M BTU/hr (80–32,940 kW), flexible for all industrial scales, with reliable ignition/flame monitoring for safe operation.
-
Broad capacity: 310k–124.55M BTU/hr (80–32,940 kW), fits all industrial scales
-
Multi-fuel compatible: NG, LPG, No.2/No.6 fuel oil, flexible selection
-
Dual air temp options: Ambient/preheated (up to 900°F/482°C) secondary air, energy-efficient
-
Dual atomization: Low-pressure (gaseous/No.2); high-pressure (No.6 fuel oil)
-
Reliable ignition/flame monitoring: IPG5413 gas pilot (integral for large models) + UV scanner
-
Adjustable air-fuel ratio: Up to 1000% excess air (select models) for full combustion
-
Structured air supply: Separated primary/secondary paths, stable combustion
-
Robust flame specs: 23–324in (570–8230mm) length, 11–66in (270–1680mm) diameter, fits diverse furnaces
-
Inquire for quote & full specs!
