An industrial drying combustion system must match the process heat duty, fuel supply, combustion air, controls, and safety interlocks before equipment is selected. The supplied automotive reference systems are rated at 700,000 kcal/h and 1,200,000 kcal/h; those values are project-specific and are not universal sizing rules [1]. Confirm the process temperature, natural-gas pressure, ventilation arrangement, and local compliance requirements with qualified personnel.

System Scope

The two supplied natural-gas project references are 700,000 kcal/h and 1,200,000 kcal/h [1]. If those values are expressed in kcal/h, they are approximately 0.81 MW and 1.40 MW respectively; the conversion uses 1 thermochemical calorie = 4.184 J [3].

Heatflam configures industrial drying combustion systems for automotive paint drying, industrial ovens, drying chambers, coating lines, and other process-heating applications. The final configuration is based on the actual process, not only on a nominal burner rating.

• Fuel system: Natural-gas piping, pressure-regulation components, safety shut-off valves, and a gas valve train matched to the confirmed site supply.
• Combustion package: Burner, ignition equipment, flame monitoring, combustion air equipment, and the required control interfaces.
• Control scope: A control cabinet and field connections configured around the agreed operating sequence and interlock requirements.

Paint Drying Project

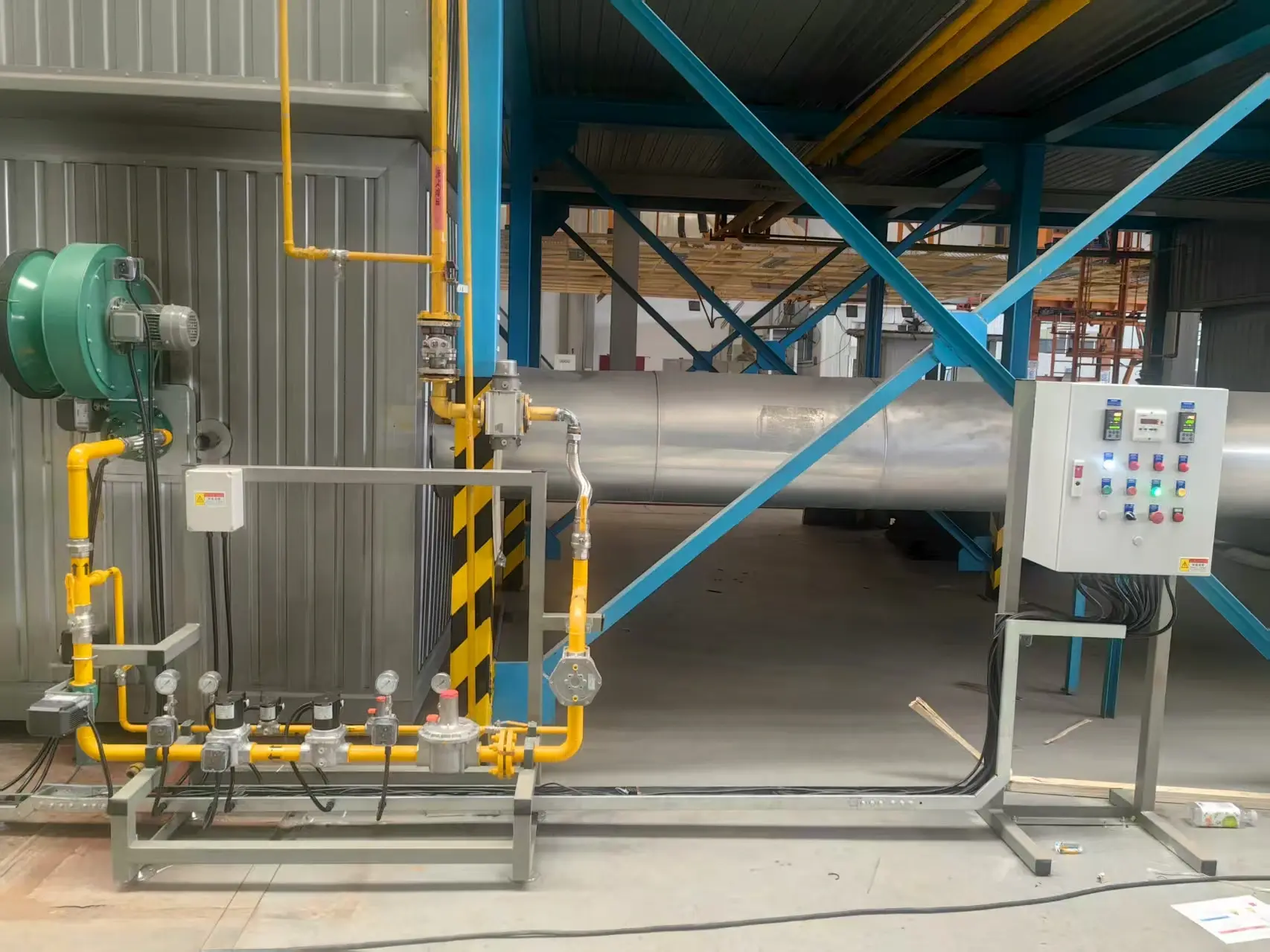

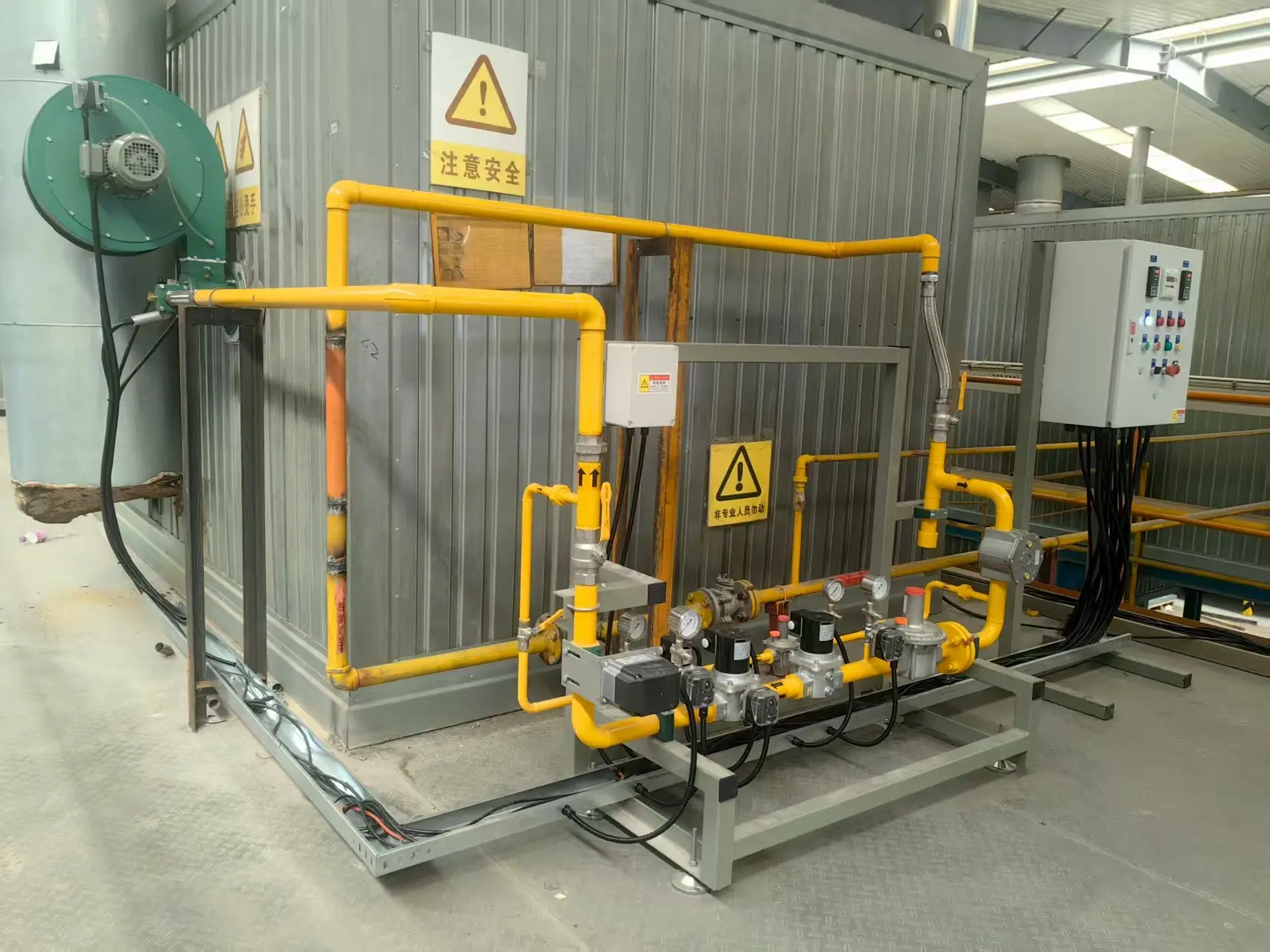

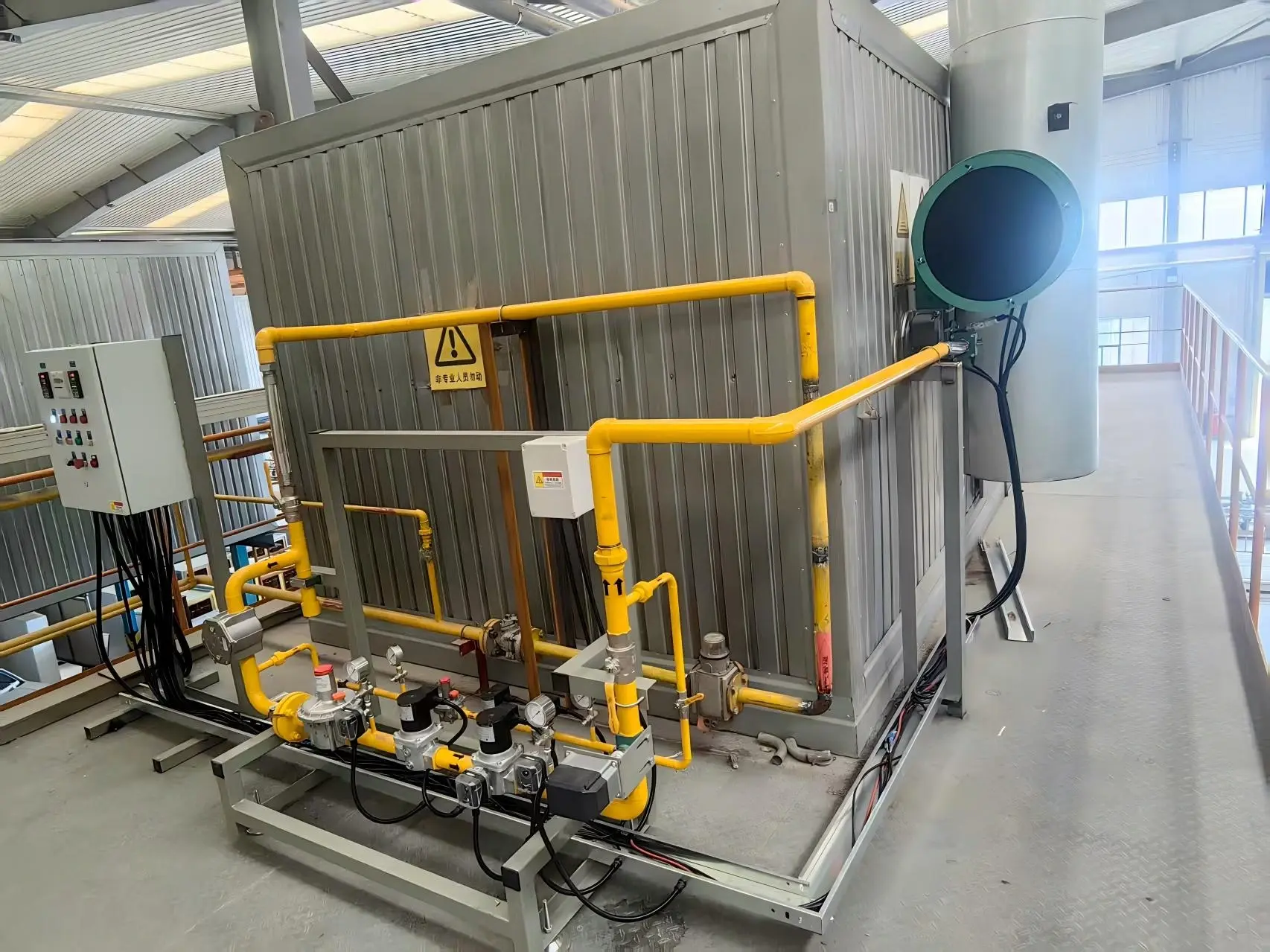

The supplied automotive paint-drying reference is rated at 700,000 kcal/h, or approximately 0.81 MW when the stated rating is kcal/h [1] [3]. The visible equipment includes a natural-gas valve train, burner assembly, control cabinet, and associated piping.

This project is presented as a China automotive-factory reference supplied by Heatflam. It should be used to demonstrate configuration capability, not as a guaranteed result for another site.

RTO Reference

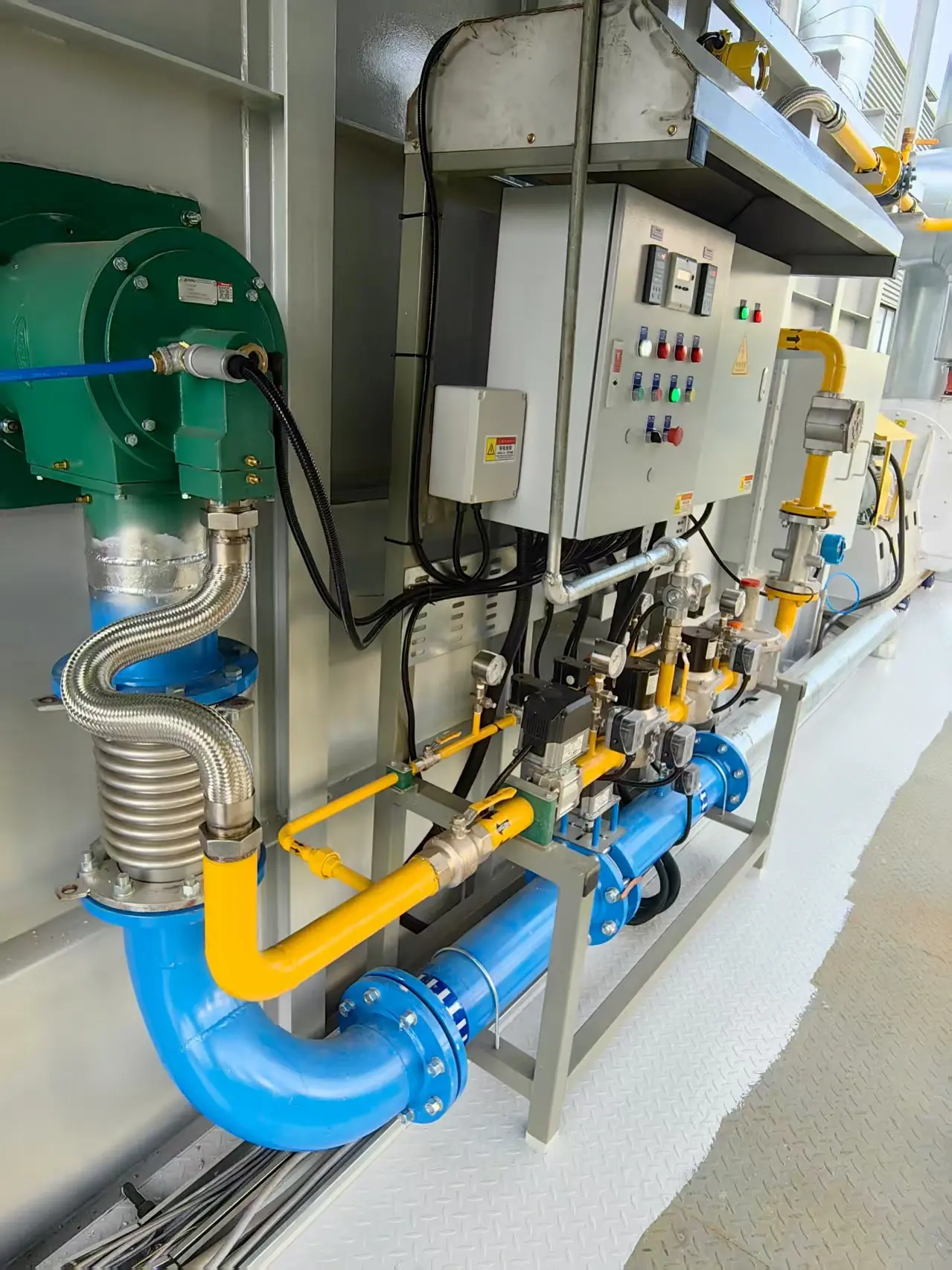

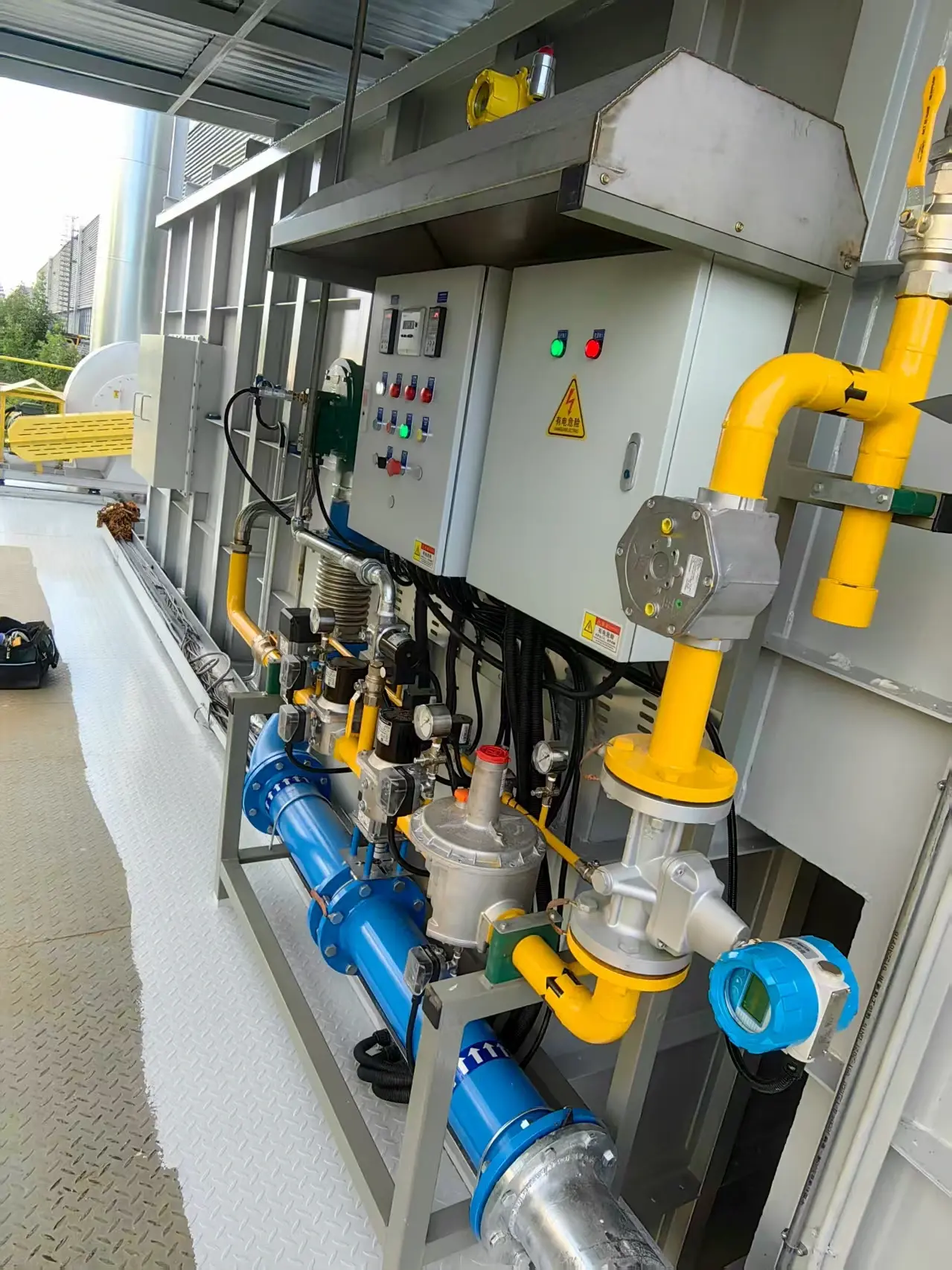

The supplied RTO combustion-system reference is rated at 1,200,000 kcal/h, or approximately 1.40 MW when the stated rating is kcal/h [1] [3]. The system shown includes a burner, gas valve train, control cabinet, and field piping.

An RTO is an exhaust-gas treatment application, not a paint-drying system. It is included here as a related automotive thermal-process reference because the project uses comparable natural-gas combustion, control, and fuel-train integration work.

Selection Inputs

A 0.81 MW or 1.40 MW reference does not define the correct size for a new project [1]. Heatflam needs the site process information before recommending a system. The minimum inputs below reduce the risk of selecting a burner or gas train that does not match the drying equipment.

• Application: Automotive paint drying, industrial oven, coating line, drying chamber, or another process.
• Process data: Required heat output, target temperature, air volume, duty cycle, and equipment drawing.
• Fuel data: Natural-gas inlet pressure, fuel composition where available, and the available connection point.
• Site requirements: Country, electrical supply, controls interface, ventilation, safety requirements, and local approval basis.

Quality Management

Shanghai Yan Controlled Industrial Technology Co., Ltd. holds an ISO 9001:2015 quality management system certificate with the stated validity period of October 15, 2025 to October 14, 2028 [2]. The certificate scope states the sale of industrial burners for export and the assembly of non-standard burners.

The certificate is a quality-management-system document. Product-specific certification, local compliance, and project acceptance requirements must be confirmed separately for each order.

Field Troubleshooting Priorities

• Heat duty: When a project is stated as 700,000 kcal/h, confirm whether the value is kcal/h and obtain the process heat-load calculation before selection [1].
• Fuel basis: For a 1,200,000 kcal/h natural-gas reference, verify the available inlet pressure and site fuel condition instead of copying the reference configuration [1].
• Power conversion: Treat 700,000 kcal/h as approximately 0.81 MW only when the rating is a thermal kcal/h value [3].
• Project type: Keep the 1,200,000 kcal/h RTO system separate from a drying-system specification because the RTO reference is for exhaust-gas treatment [1].
• Certificate use: Before citing ISO 9001:2015, confirm the certificate remains within its stated October 14, 2028 expiry date and that its scope matches the proposed work [2].

Before Replacing the System

• Application fit: Confirm the drying process, furnace or chamber dimensions, required heat duty, fuel, and operating schedule before replacing a burner or gas train.
• Limits: A project reference at 0.81 MW or 1.40 MW is not a capacity guarantee for a different process or installation.
• Operational risks: Verify fuel-train safety, flame monitoring, ventilation, controls integration, and the required shutdown sequence before commissioning.
• Required confirmation: Obtain the applicable OEM, qualified engineer, local code, permit authority, insurer, and site-acceptance requirements before modifying fuel or safety circuits.

Terms That Affect Diagnosis

• Industrial drying combustion system: The burner, fuel train, controls, and related equipment that provide heat for a drying process.
• Gas valve train: The assembly that regulates, isolates, and monitors gas supplied to the burner.
• Combustion control cabinet: The electrical control assembly that coordinates the operating sequence and agreed safety interfaces.
• Heat duty: The required rate of heat input; it must be defined with its unit and operating basis before burner selection.
• RTO: Regenerative thermal oxidizer equipment used for exhaust-gas treatment; it is not interchangeable with a drying-system specification.
• ISO 9001:2015: A quality-management-system standard; the certificate scope and validity must be checked separately from product-specific compliance.

Verified Troubleshooting Data

The table separates user-supplied project information from the thermal-unit conversion and certificate details. Any parameter not shown in the supplied material is marked for confirmation rather than assumed.
