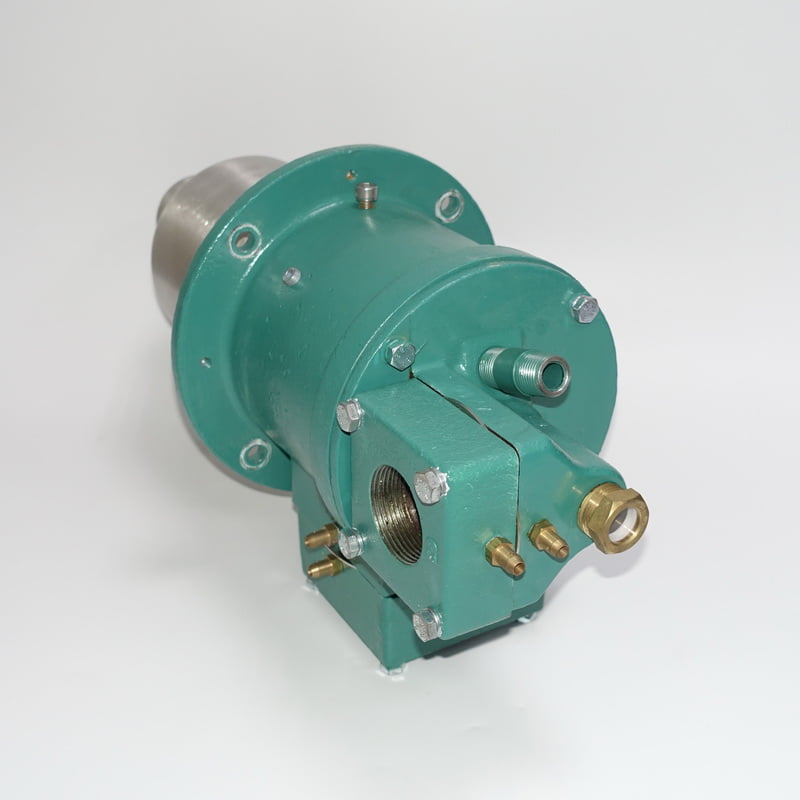

Nozzle-mix high/medium velocity burners for industrial heating. HTJ uses ambient combustion air; HTJPCA is engineered for preheated air (up to 1000°F/538°C, select models up to 700°F/370°C). Both deliver intense hot gas streams to enhance temperature uniformity & efficiency, ideal for furnaces. 150,000–20,000,000 Btu/h (40–5333 kW) across 14 sizes, 50:1 turndown ratio. Compliant with EN 746-2, Machinery Directive 2006/42/EC, and EAC specs (HTJ) for safe industrial operation.
Core Highlights:
-
Exceptional 50:1 turndown ratio for precise adaptation to varying process loads
-
Wide capacity range: 150,000–20,000,000 Btu/h (40–5333 kW) across 14 sizes
-
Dual velocity options: HTJ (high up to 500 ft/s/152 m/s; medium up to 250 ft/s/76 m/s); HTJPCA (250–750 ft/s/76–230 m/s, based on preheated air temp)
-
High temperature tolerance: Max process temp 2800°F (1540°C) for extreme heating scenarios
-
Multi-fuel compatible: Natural gas, propane, butane (custom blends require manufacturer consultation)
-
Flexible installation: Air/gas inlets adjustable in 90° increments for diverse piping configs
-
Low emissions: Engineered for clean combustion, meeting industrial environmental standards
-
Versatile control: Supports modulating gas/air, fixed-air, high/low (pulse firing), & HTJPCA preheated air control
-
Reliable safety systems: 6000 VAC full-wave spark ignition, UV scanner/flame rod monitoring, compliant gas shut-off valve trains
-
Durable combustors: Alloy/silicon carbide/refractory options, max chamber temp up to 2800°F (1538°C)
-
Preheated air advantage: HTJPCA optimizes efficiency with preheated combustion air, reducing energy consumption
-
Inquire for quote & full specs!
