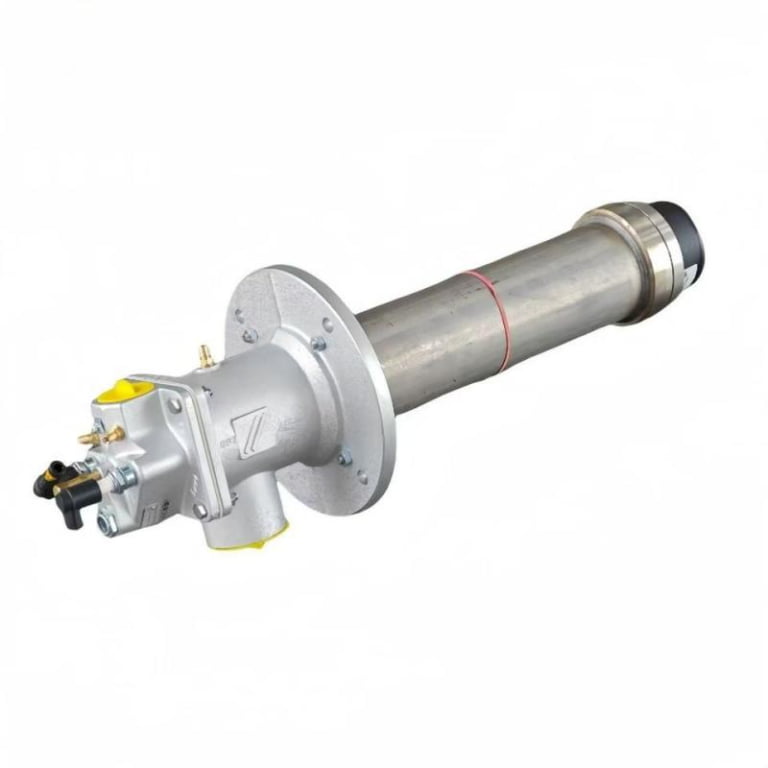

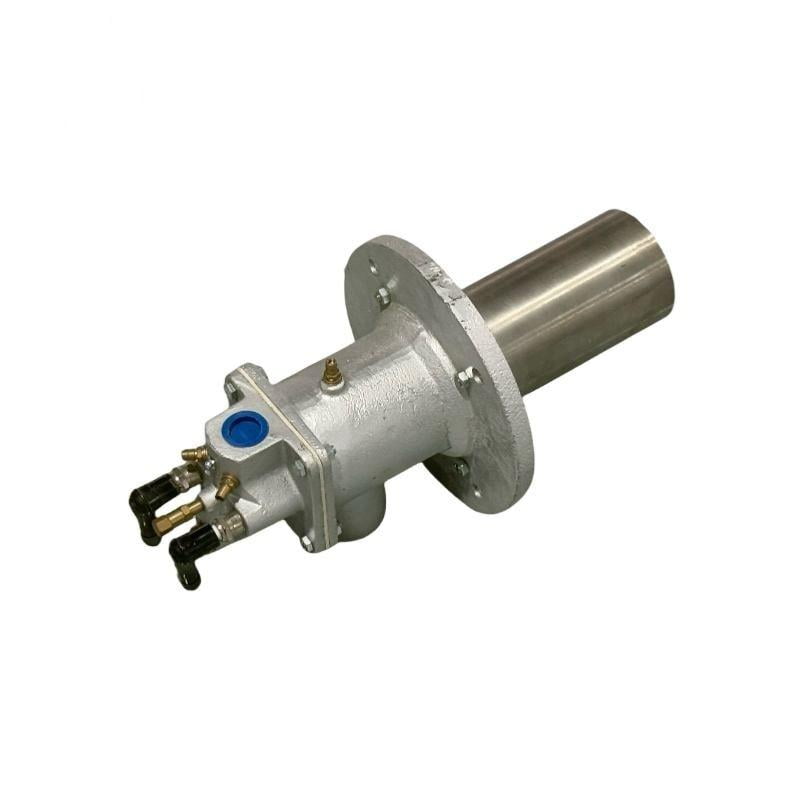

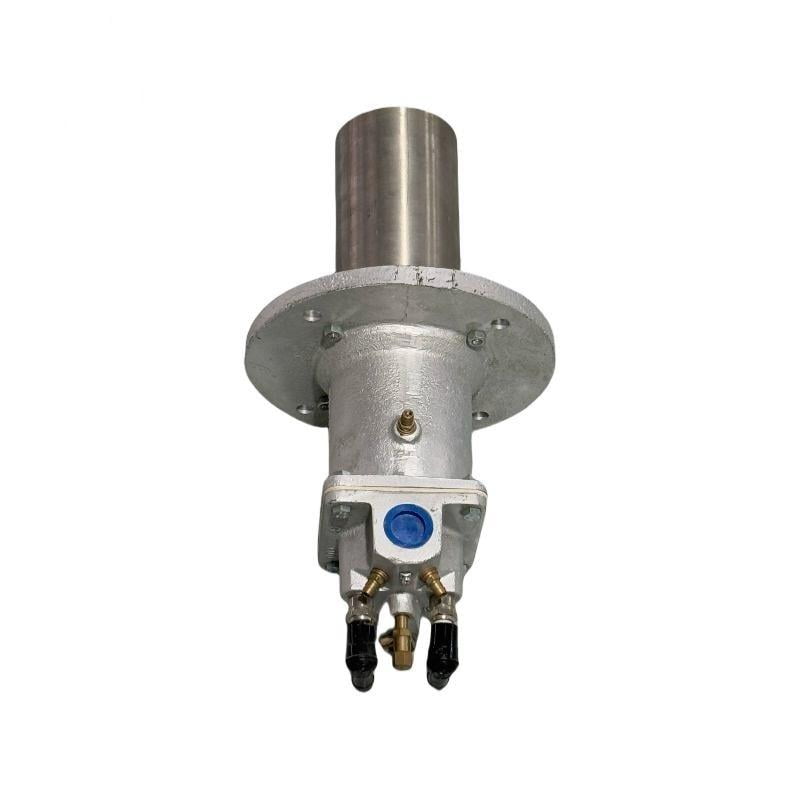

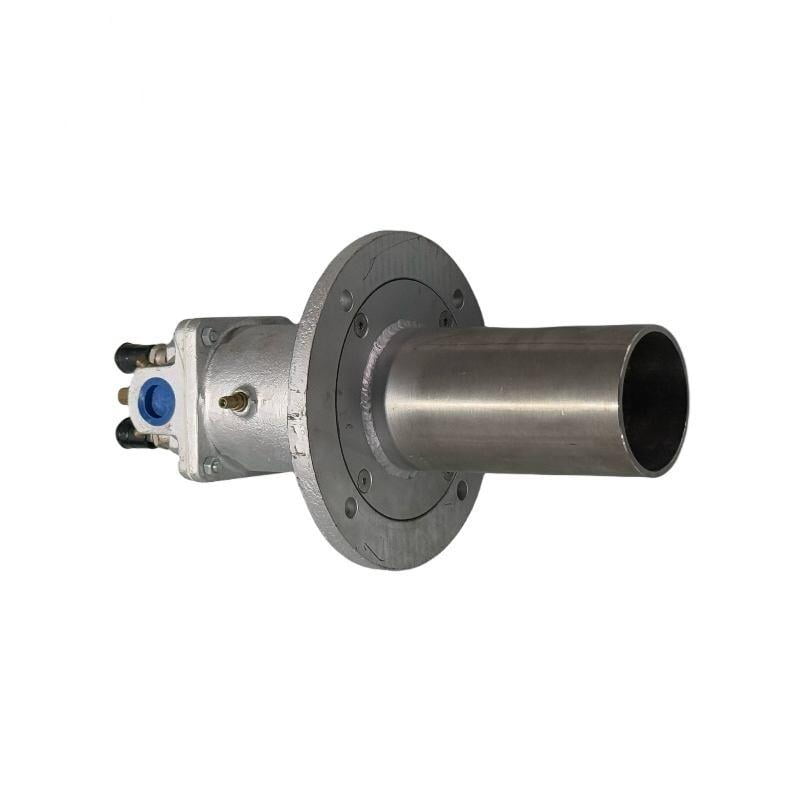

Heatflam HIO Series Burners
Nozzle-mixing gas burners designed for industrial high-temperature applications, relying on refractory concrete burner blocks to achieve diverse flame shapes. Ideal for metal processing, ceramics, incineration, hot air generation, and thermal systems, offering flexible control, high temperature adaptability, and modular reliability.
Core Highlights:
- Burner block integration: Works with refractory concrete blocks (cylindrical, flat flame, closed cone) to customize flame shapes as needed.
- Wide capacity range: 40–1000 kW (151–3782×10³ BTU/h) across 8 sizes (50–200) to fit diverse industrial needs.
- High temperature tolerance: Air preheating up to 600°C (1112°F) for HIOW/ZIOW models; max furnace temperature 1600°C (2912°F) for high-temperature versions.
- Flexible control modes: Modulating, ON/OFF cyclic (with/without pilot rate), cascade control (turndown up to 1:45) for precise load adaptation.
- Multi-fuel compatibility: Natural gas, LPG, coke oven gas, low calorific value gas, biogas (with appropriate burner heads).
- Reliable flame supervision: Standard flame rod, optional UV sensor or integrated pilot for safe operation.
- Certifications: Eurasian Customs Union compliant; meets EN 746-2 and Machinery Directive 2006/42/EC.
- Modular & adjustable design: Length increments (100mm) to fit custom furnace wall thickness; easy maintenance with removable components.
- Low emissions: NOx and CO values meet industrial standards (varies by temperature, fuel, and operating conditions).
- Versatile installation: Rotatable gas/air connections (90° steps); compatible with flat flame setups and radiant tube heating.
Inquire for quote & full specs!
