HIC、HZIC

Technical snapshot

5 populated fields

Type: Nozzle-mixing
Capacity Range: 15 – 1000 kW (57 – 3780 kBTU/h)*
Max Process Temperature: 1450°C (2640°F)
Compatible Fuels: Gas
Number of Sizes: 8 (size 50 – 200) With TSC ceramic tubes 22 different combinations possible

Request Quote View Specs ↓

For faster selection: share your application, fuel, required capacity and operating temperature.

Product Description

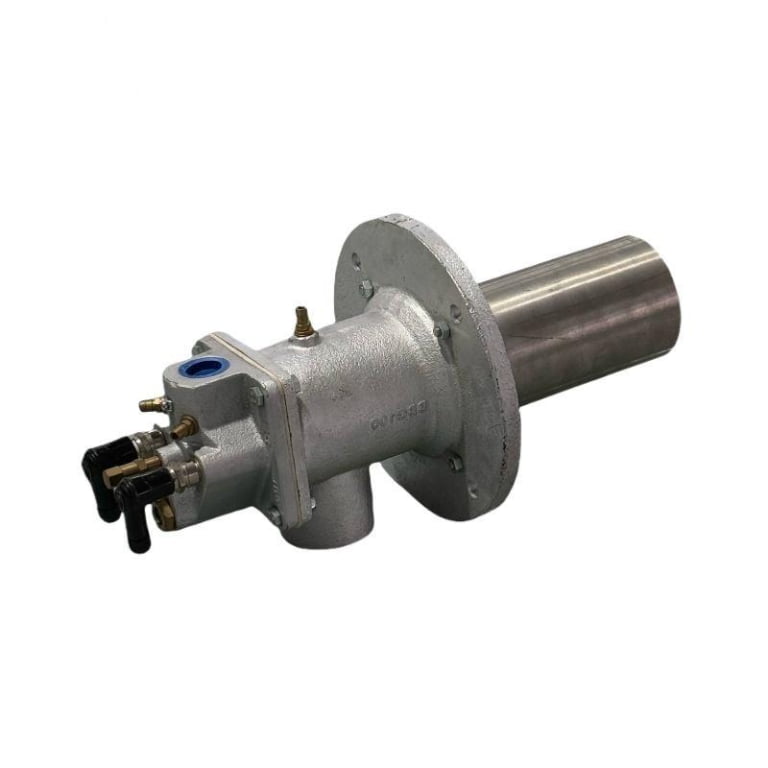

Heatflam HIC/HICA/HICW/HZIC Series Burners

Nozzle-mixing gas burners with SiSiC ceramic tubes, ideal for fibre-lined/brick-lined industrial furnaces. No burner block required, offering reliable ignition, flexible control, and high temperature adaptability for metal processing, ceramics, and incineration applications.

Core Highlights:

SiSiC ceramic tube: Serves as combustion chamber for complete combustion, eliminating burner block need
Wide capacity range: 15–1000 kW (56.7–3782×10³ BTU/h) across 8 sizes (50–200)
High air preheating tolerance: Up to 600°C (1112°F) for HICW/HZICW models
Flexible control modes: ON/OFF cyclic (with/without pilot rate) and modulating control
Multi-fuel compatible: Natural gas, propane, coke oven gas, low calorific value gas, biogas
Durable modular design: Burner body, insert, and ceramic tube for easy maintenance and length adjustment
Reliable flame supervision: Standard flame rod, optional UV sensor or integrated torch
High temperature resistance: Max furnace temperature 1450°C (2642°F)
Certifications: Eurasian Customs Union compliant, meets EN 746-2 and Machinery Directive 2006/42/EC
Adjustable length: Steel extensions in 100mm increments to fit diverse furnace wall thicknesses
Heat-resistant variants: Available for hot air up to 600°C with heat-resistant steel components
Low emissions: NOx and CO values meet industrial standards (varies by temperature and fuel)
Versatile installation: Horizontal/angled mounting, 90° rotatable gas/air connections

Inquire for quote & full specs!
