CF
Industrial Grade

CF

Product Information

Type Nozzle-mixing
Capacity Range 300 - 732 kW/ft (1.0 - 2.5 MBTU/hr/ft)
Compatible Fuels Gas
View Specs

Product Description

Heatflam CF Line Burner

Heatflam CF Line Burner: Nozzle-mixing modular line burner for fresh/recirculated air process heating. Designed for impingement firing (flexible straight/grid/ladder arrangements) with external combustion air blower. Features ultra-low emissions and high operational flexibility.

Features & Benefits:

  • Ultra-low emissions: NOₓ ≤25 ppm, CO ≤250 ppm (3% O₂)
  • High capacity: Up to 2.5 MMBtu/hr/ft (732 kW/ft)
  • Excellent temperature uniformity & stable combustion (nozzle-mixing technology)
  • 25:1 turndown ratio for flexible adjustment
  • Versatile: Adapts to inert/high-moisture/low-O₂ air streams; up to 4000 fpm parallel velocity
  • Durable: Stainless steel housings, nickel-plated bodies
  • Modular design for custom configurations
  • Precise ratio control (MICRO® RATIO Valve) & SMARTFIRE™ control compatible

Compatible Solutions

Building Materials Processing Industry

Learn More

Carbon Black Industry

Learn More

Chemical Materials and Titanium Dioxide Industry

Learn More

DeNOx heating Industry

Learn More

Grain, Seed, Timber, Paper Industry

Learn More

Lithium Battery Materials Industry

Learn More

Downloads

CF PDF Documentation

Need Customization?

Our engineering team can customize this system to your exact process requirements.

Chat on WhatsApp

Related Products

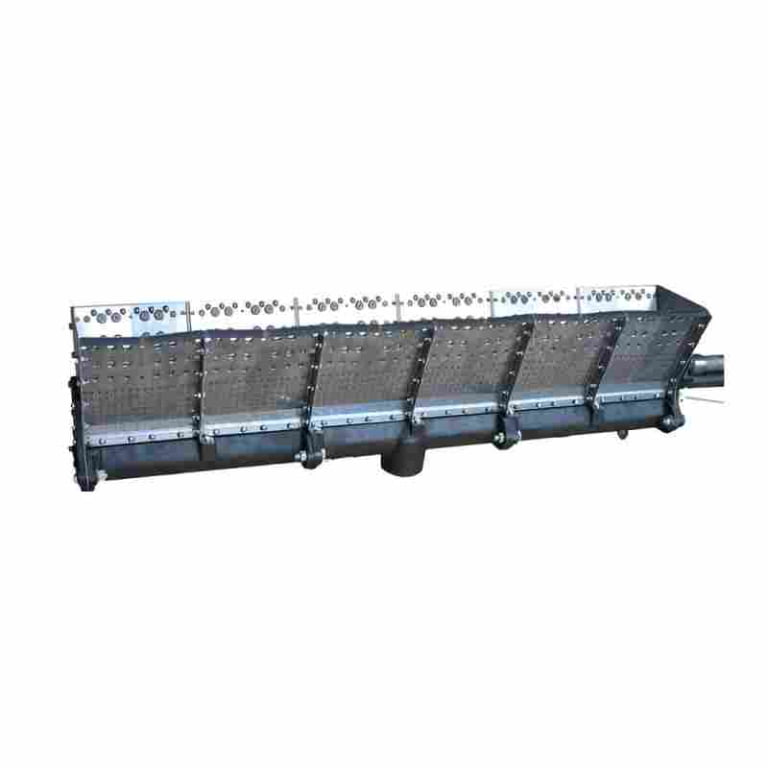

HLV

HLV

Heatflam HLV AIRFLO® Series In-Duct Firing Line Burner Modular in-duct line burner for heating moving process air. Utilizes air stream as combustion air, ensuring stable combustion & seamless integration. Core Highlights: Wide temp tolerance: Up to 1050°F upstream, 1700°F outlet (model-dependent) Low O₂ compatible: Down to 12% vol, no extra primary air needed Ultra-low emissions, […]

View Details
AHP

AHP

Heatflam AHP AIRFLO® Series In-Duct Firing Line Burner High-performance modular in-duct burner for direct-fired make-up/process air heating. Features cast iron/aluminum body & V-shaped stainless steel mixing plates, ensuring odor-free combustion, stable flame & superior emissions vs standard models. Core Highlights: Superior emissions: Lower CO/NO₂, meets global air quality standards High heat output: Up to 1,000,000 […]

View Details

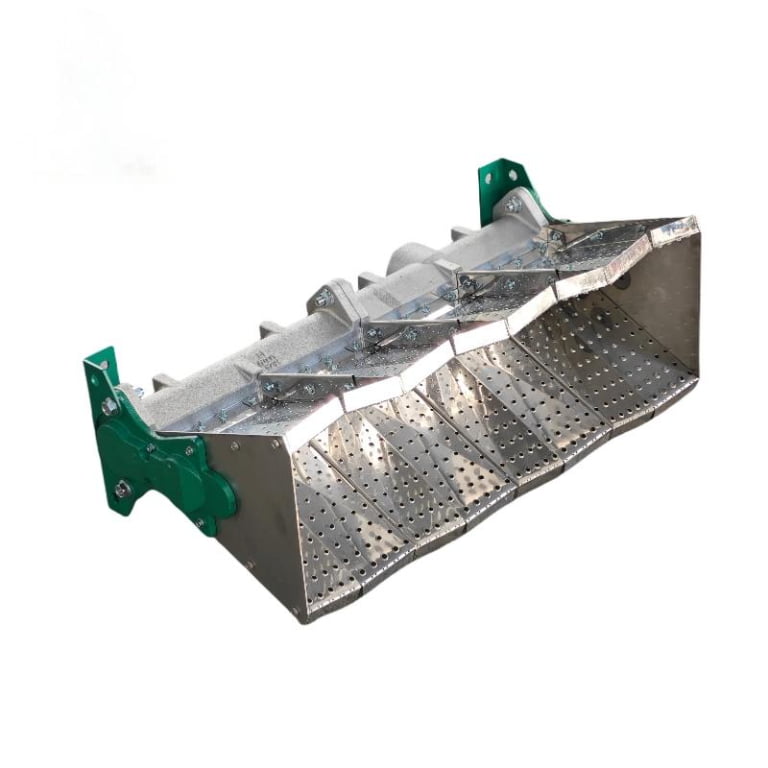

AH
